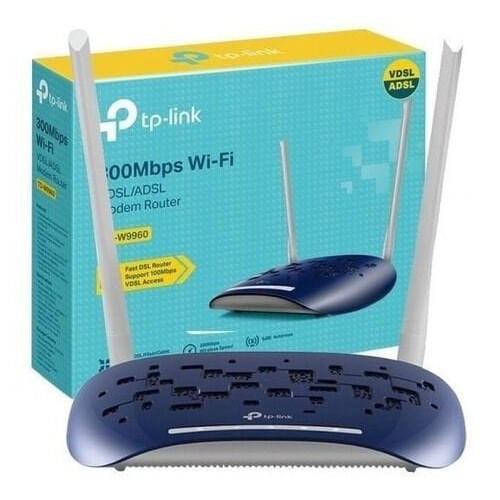

TP-Link TD-W9960 | WiFi 4 VDSL/ADSL Modem Router 2 Harici Anten 300 Mbps 4 Ethernet Portu

Ürün Kodu: W9960
Vergi 1.068,00TL

1.281,60TL

DONANIM ÖZELLİKLERİ

Arabirim

3 10/100Mbps RJ45 LAN Ports
1 10/100Mbps RJ45 LAN/WAN Port
1 RJ11 Port

Buton

WPS Button
RESET Button
Power ON/OFF Button

Harici Güç Kaynağı

9VDC/0.6A

IEEE Standartları

IEEE 802.3, 802.3u

VDSL2 Standartları

ITU-T G.993.2
ITU-T G.993.5 (G.vector)
ITU-T G.998.4 (G.INP)

Boyutlar ( W X D X H )

181.6 x 129.7 x 36.2mm

Anten

Omni directional, Fixed

Anten Kazancı

2 x 5dBi

KABLOSUZ ÖZELLİKLERİ

Kablosuz Standartlar

IEEE 802.11b, 802.11g, 802.11n

Frekans

2.400-2.4835GHz

Kablosuz Güvenlik

64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2
encryptions, Wireless MAC Filtering

İletim Gücü

<20dBm(EIRP)

YAZILIM ÖZELLİKLERİ

Quality of Service

WMM, Bandwidth Control (IP QoS)

Gelişmiş Özellikler

Parental Controls, Network Address Translation(NAT), Port Mapping(Grouping), Static Routing, RIP v1/v2(optional), DNS Relay, DDNS, IGMP V1/V2/V3

Güvenlik

NAT Firewall, SPI Firewall, DoS Protection, IP & MAC Binding, Service Filtering, Access Control, Parental Controls

Çalışma Modları

VDSL/ADSL Modem Router, Wireless Router,

Yönetim

Web Based Configuration (HTTP), Remote management, CWMP(TR-069), Web Based Firmware Upgrade, Diagnostic Tools

VPN Pass-Through

IPSec VPN

Protokoller

Supports IPv4 and IPv6

ATM/PPP Protokolleri

PPPoE (RFC2516)
PPPoA (RFC 2364)
MER\IPoE (RFC 1483 Routed)
IPoA (RFC1577/2225)
Bridge (RFC1483 Bridge)

APP

Tether App

NAT

Virtual Server, Port Triggering, DMZ, ALG, UPnP

OTHER

Network Services Enabled by Default

Web Server
Manage and configure device through web (HTTP/HTTPS)
• Port: 80/443 Protocol: TCP

DHCP Server
IP address assignment (DHCP)
• Port: 67 Protocol: UDP
DNS
• Port: 53 Protocol: TCP

App management
Manage and configure device through app
• Port: 22 Protocol: TCP
• Port: 20002 Protocol: TCP

CWMP
CPE WAN Management Protocol
• Port: 7553 Protocol: TCP

DİĞERLERİ

Sertifika

CE, RoHS

Paket İçeriği

TD-W9960
External DSL Splitter
RJ-11 DSL Cable
RJ-45 Ethernet Cable
Quick Installation Guide
Power Adapter

Sistem Gereksinimleri

Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10,
Mac OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other
Java-enabled browser
Subscription with an internet service provider (for internet access)

Ortam

Operating Temperature: 0℃~40℃(32℉~104℉)
Storage Temperature: -40℃~70℃(-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
